I3200 Fiber 2.0 Main board Headboard Inkjet Print Control System
USB2.0 optical fiber inkjet printing control system, For photo
machine inkjet printing, UV flatbed printing, textile thermal
transfer, textile film transfer, double-station direct injection,
etc., there are mature solutions.
| Name | USB2.0 optical fiber inkjet Printer board | Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and
other inks |
| Nozzle model | Epson I3200 | Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash
spray), short circuit protection |
| Function support | Anti-collision and continuous printing, automatic height
measurement, variable point printing, device power failure and
continuous printing, USB automatic reset, USB disconnection and
continuous printing, paper out detection, ink stack self-check,
etc. | Board support | Single head, double head, three head, four head, six head, eight
head, twelve head, sixteen head |
| Data interface | 1.25G optical fiber is connected to the spray car board
USB2.0 cable to connect to the computer | Trolley speed | 1.2M/S |
| Color channel | 8 channels/8 colors | Effective print width of print head | 1.33 inches |
| Number of nozzles | 3200 | RIP-software | Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX,
Wasatch, etc. |
| Ignition frequency | 30KHz | Application field | Advertising photo printing, UV coil, textile printing and other
industries |
Application machine:
White ink scald transfer machine,Photo machine,UV flatbed
machine,Double-station direct printing machine, etc.
The heat transfer machine is suitable for all kinds of fabrics,
Clothing cutting piece, seamless underwear, knitted underwear,
swimwear, hats, gloves, umbrellas, etc.
The Photo machine prints the colorful patterns on the special
materials with the printheads. It is generally used in advertising,
graphics, and CAD industries. It has high precision and long life
of the printhead. The photo machine solves the shortcomings of gray
color and high machine purchase cost, And it can make a variety of
inks for users, such as indoor and outdoor, widely used in many
industries.
UV printing is a high-tech, plate-free, full-color digital
printing. It is not limited by materials. It can be used on metal,
plastic, sliding doors, sliding doors, glass, plates, various
signs, crystal, PVC, acrylic, stone, leather, etc. Color
photo-level printing on the surface. There is no need to make a
plate and complete the printing at one time, with beautiful and
rich colors, abrasion resistance, UV protection, simple and
convenient operation, fast printing image speed, and fully conform
to industrial printing standards.
Application scenario:
Schoolbag hot Painting Hat hot Painting Signage color printing
Phone case color printing
Outdoor advertising printing Sliding door color printing Metal box
color printing Clothing hot painting
Product Show:

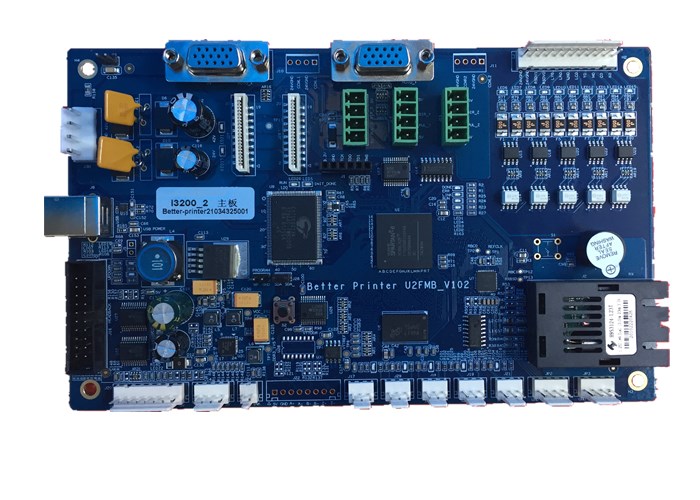

Main board
Head board

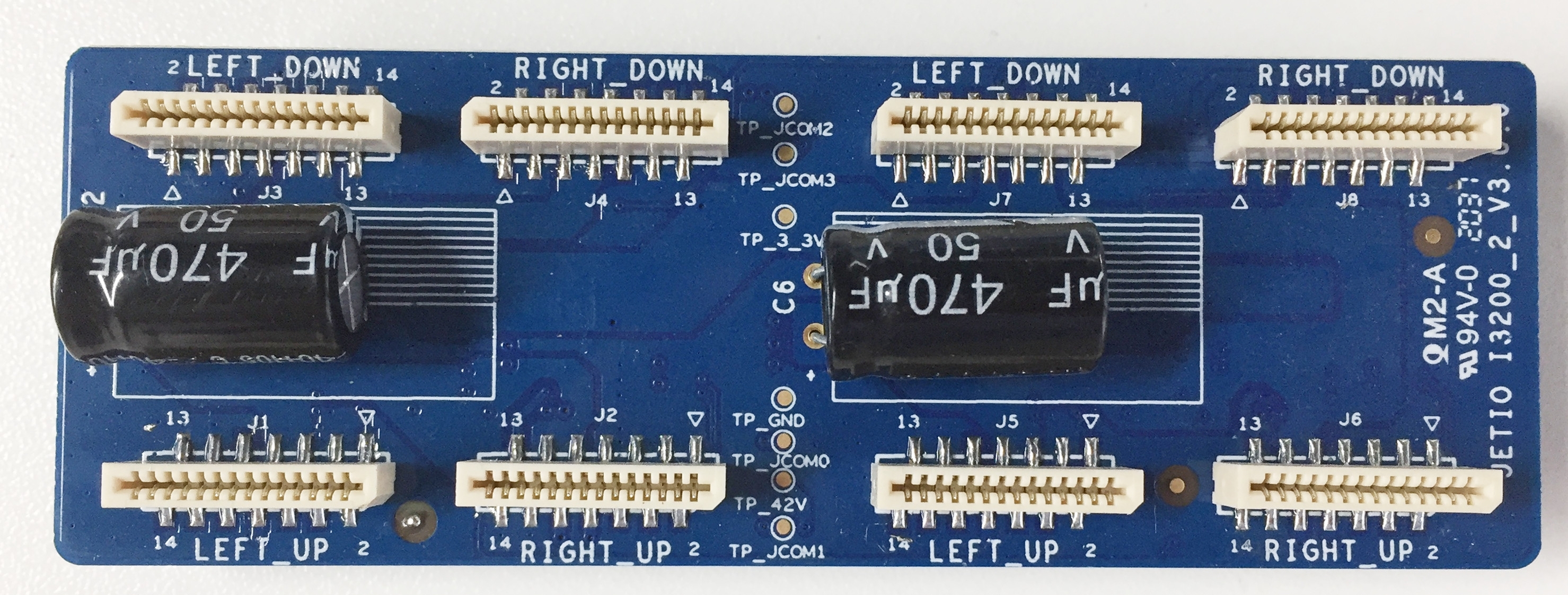

Sprinkler head Adapter board

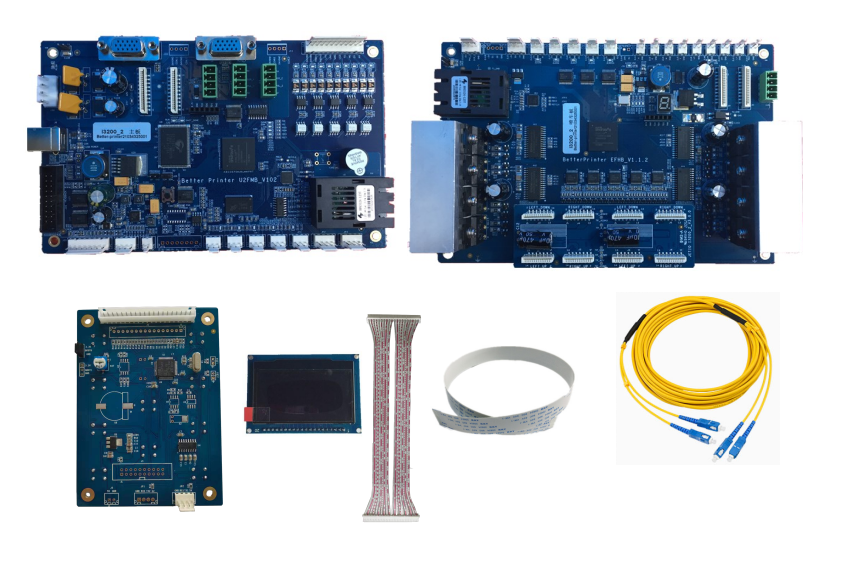

Inkjet Printher Control Board I3200 suite
About us:
1.Professional after-sales technical service team to ensure that
your products are of better quality.
2.All products we sell have been passed strict inspection before
shipment.
3.Our products cover all kinds of industrial inkjet printer circuit
boards and technical services.
4.If you have any questions both before ordering and after
ordering,please feel free to contact us.
5.After you received our products, if you have any problems or
questions,please contact us before leave the negative feedback for
us .We will try to solve any problem for you !
Cautions:
1.Warranty method of the product: the warranty period of the board
card is 1 year, and the damage of the board card caused by wrong
operation and human factors is not covered by the warranty.
2.Other responsibilities: Cooperate with customers in technical
guidance and product maintenance. Customers shall keep confidential
the product information, materials and manuals of the Company, and
both parties shall be obliged to keep confidential the business
cooperation information of both parties.
