    USB2.0 Low Cost DX7 Single Head Printer Inkjet Board Use For Wall Printer UV Flatbed Printer

    Ask Lasest Price
    Brand Name : BetterPrinter
    Model Number : U2EWMB_V104,WHB_DX7_1J_V103,DX7
    Payment Terms : Bank transfer / WeChat / Alipay
    Delivery Time : 3-10 work days
    • Product Details
    • Company Profile

    USB2.0 Low Cost DX7 Single Head Printer Inkjet Board Use For Wall Printer UV Flatbed Printer

    USB2.0 Low Cost DX7 Single Head Printer Inkjet Board Use For Wall Printer UV Flatbed Printer


    Quick Details:


    USB2.0 flat line inkjet printing control system, using flat cable connection, cost-effective. Various print head arrangements and spot color settings are available, such as staggered arrangement (split arrangement) full color, white color with same output, side-by-side, side-by-side 8 colors (kcmy+4 spot colors), etc.

    Data interfaceUSB cable to connect to the computer,Flexible flat cable to the head board
    Color channel8 channels/8 colors
    Number of nozzles1440
    Ignition frequency30KHz
    Nozzle featuresCan print water-based, thermal transfer, paint, eco-solvent, UV and other inks
    Nozzle protectionNozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection
    Board supportSingle head, double head, three head, four head, eight head, sixteen head, thirty-two head
    RIP-softwareMainstream RIP software such as MainTop, Photoprint, UltraPrint, ONYX, Wasatch, etc
    Application fieldAdvertising photo printing, UV coil, textile printing and other industries
    Function supportAnti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc.

    Application machine:


    Wall printers, ground machines, photo machines, small-format flatbed printing, etc.


    The wall printer is a machine and equipment that prints patterns on the wall. It uses mobile printing to spray the patterns on the wall. You can paint on walls, rice paper, brick walls, diatom mud, ceramic tiles, glass, etc. You only need to set the picture size to paint. Wall printers have low printing costs, high printing accuracy and better results, which can save time and labor.


    The flatbed printing system can perform color photo-level printing on wood, glass, crystal, PVC, ABS, acrylic, metal, plastic, stone, leather, cloth, and other textile surfaces. The product is stable, the interface is simple, the operation is convenient, and the printing speed is fast.



    Application scenario:

    Marble color printing Background wall color printing PCB character printing


    Product Image:


    Printer Inkjet Board DX7 Suit

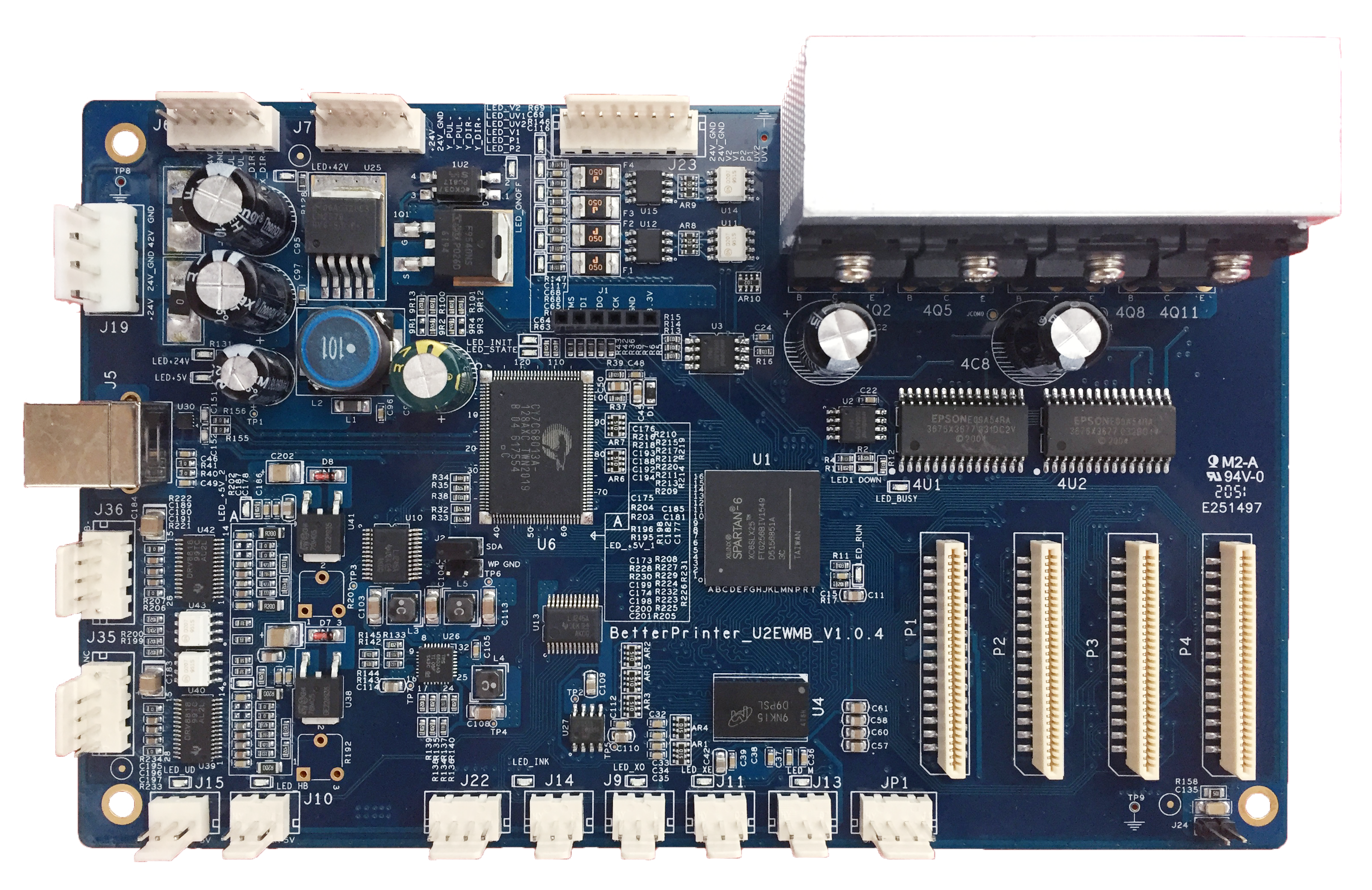

    Main board


    Head board


    All boards must pass 4 checks during shipment:


    1. Raw material inspection.


    2. Production testing.


    3. Board card printing detection.


    4. Board shipment inspection.


    Our advantages and services:

    1. Software development engineers have been engaged in the development and research of industrial printing systems for many years, and will provide more accurate and efficient industrial inkjet printing control system development and services.


    2. Technical service engineers are familiar with the company's products and applications, and have a strong ability to analyze and solve problems. A professional after-sales technical service team ensures that your product quality is better.


    3. The company's products have been successfully applied to many industries, and have reached a high level in terms of color effect and printing speed efficiency.


    4. We have a strict board test process to ensure that customers enjoy high-quality printed products.


    Packing details:


    Inner Package : bubble plastic bag.


    Outter package : Carton.
