DX7 Fiber 2.0 Main board Head board Inkjet Print Control System
USB2.0 optical fiber inkjet printing control system, application
nozzle model: DX7, using optical fiber cable connection, fast
transmission speed.
For photo machine inkjet printing, UV flatbed printing, textile
thermal transfer, textile film transfer, double-station direct
injection, etc., there are mature solutions.
| Name | USB2.0 fiber optic DX7 Inkjet Printer Board |
| Main board model | U2FMB_V102 |
| Head board model | EFHB_V112 |
| Nozzle model | Epson DX7 |
| Function support | Anti-collision and continuous printing, automatic height
measurement, variable point printing, device power failure and
continuous printing, USB automatic reset, USB disconnection and
continuous printing, paper out detection, ink stack self-check,
etc. |
| Data interface | The 1.25G optical fiber is connected to the spray car board, and
the USB2.0 cable is connected to the computer |
| Color channel | 8 channels/8 colors |
| Number of nozzles | 1440 |
| Ignition frequency | 30KHz |
| Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and
other inks |
| Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash
spray), short circuit protection |
| Board support | Single head, double head, three head, four head, eight head,
sixteen head, thirty-two head |
| Trolley speed | 1.2M/S |
| Effective print width of print head | 1 inches |
| RIP-software | Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX,
Wasatch, etc. |
| Application field | Advertising photo printing, UV coil, textile printing and other
industries |
| warranty period | One year (12 months) |
| transport | DHL |
Application machine:
Photo machine,UV flatbed machine,Double-station direct printing
machine, White ink scald transfer machine, etc.
UV printing is a high-tech, plate-free, full-color digital
printing. It is not limited by materials. It can be used on metal,
plastic, sliding doors, sliding doors, glass, plates, various
signs, crystal, PVC, acrylic, stone, leather, etc. Color
photo-level printing on the surface. There is no need to make a
plate and complete the printing at one time, with beautiful and
rich colors, abrasion resistance, UV protection, simple and
convenient operation, fast printing image speed, and fully conform
to industrial printing standards.
Features of UV printing solution: easy to use and operate, no plate
making and repeated color registration process, easy to operate and
maintain. The use of environmentally friendly UV ink, spray and
dry, stable printing, bright colors, high curing strength, low
curing energy, environmental protection and no odor. The use of
varnish can enhance the brightness effect of the image surface, and
the adhesion of varnish on the surface of the image can also
protect the image to a certain extent.
The Photo machine prints the colorful patterns on the special
materials with the printheads. It is generally used in advertising,
graphics, and CAD industries. It has high precision and long life
of the printhead. The photo machine solves the shortcomings of gray
color and high machine purchase cost, And it can make a variety of
inks for users, such as indoor and outdoor, widely used in many
industries.
Application scenario:
Signage color printing Tile color printing Wood printing
Product Show:
DX7 Inkjet Printer Board suit
Main board
Double head board

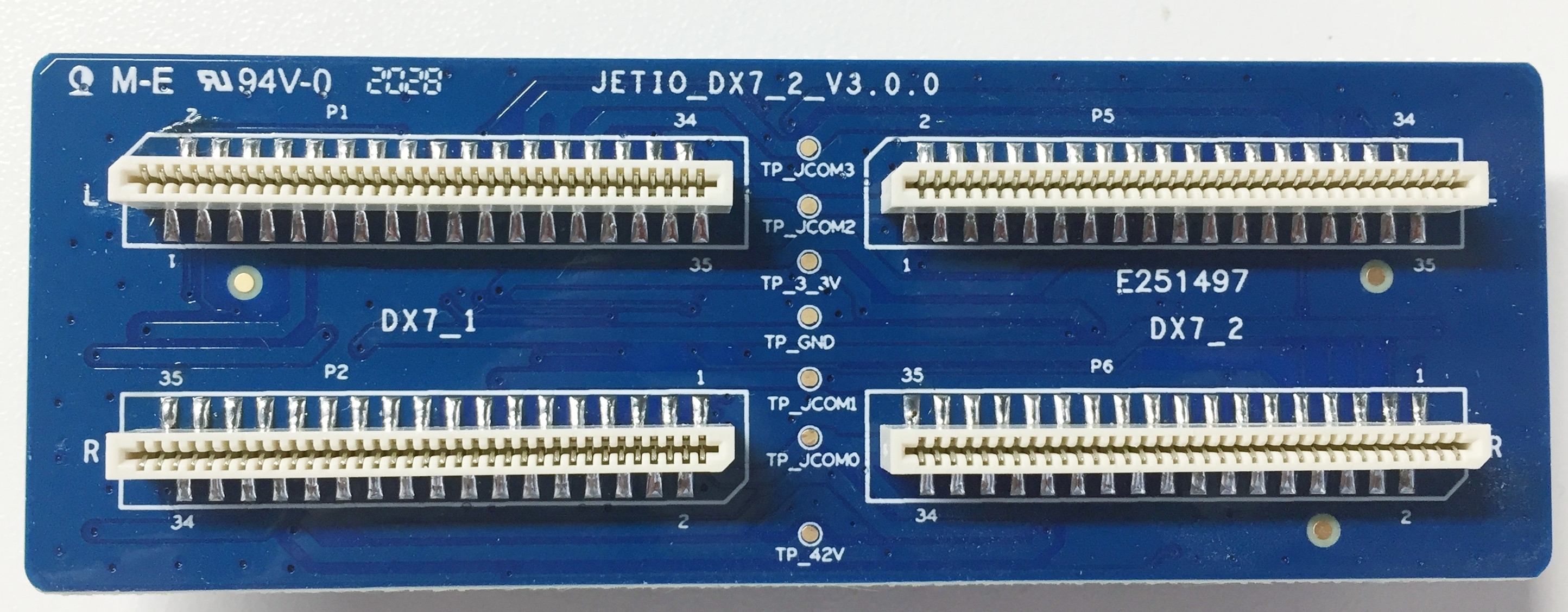

Sprinkler head Adapter board
Note:
1.All the pictures are taken by actural sample.
2.If you can't find the printer spare parts you want in our
store,please contact us or leaving messages to us,we will try our
best to help you.
3.If you have any questions about the product, please feel free to
contact us,we will reply as soon as possible,thank you!
Packing details :
Inner Package : Sponge film bubble film.
Outter package : carton box.
⇒
⇒
⇒
⇒
