Optical fiber 2.0 XP600 Main board Head board Inkjet Print Control
System
♦ USB2.0 optical fiber inkjet printing control system, application
nozzle model: XP600, using optical fiber cable connection, fast
transmission speed.
♦ For photo machine inkjet printing, UV flatbed printing, textile
thermal transfer, textile film transfer, double-station direct
injection, etc., there are mature solutions.
| name | USB2.0 Optical fiber XP600 Inkjet Printer Board | Nozzle model | XP600 |
| Main board model | U2FMB_V102 | Nozzle features | Can print water-based, thermal transfer, paint, eco-solvent, UV and
other inks |
| Head board model | EFHB_V112 | Nozzle protection | Nozzle reverse connection protection, stimulating nozzle (flash
spray), short circuit protection |
| Function support | Anti-collision and continuous printing, automatic height
measurement, variable point printing, device power failure and
continuous printing, USB automatic reset, USB disconnection and
continuous printing, paper out detection, ink stack self-check,
etc. | Board support | Single head, double head, four head, eight head |
| Data interface | The 1.25G optical fiber is connected to the spray car board, and
the USB2.0 cable is connected to the computer | Trolley speed | 1.2M/S |
| Color channel | 6 channels/6 colors | Effective print width of print head | 1 inches |
| Number of nozzles | 1080 | RIP-software | Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX,
Wasatch, etc. |
| Ignition frequency | 30KHz | Application field | Advertising photo printing, UV coil, digital printing and other
industries |
| warranty period | One year (12 months) | transport | DHL |
Application machine:
White ink scald transfer machine,Photo machine,UV flatbed
machine,Double-station direct printing machine, etc.
UV printing is a high-tech, plate-free, full-color digital
printing. It is not limited by materials. It can be used on metal,
plastic, sliding doors, sliding doors, glass, plates, various
signs, crystal, PVC, acrylic, stone, leather, etc. Color
photo-level printing on the surface. There is no need to make a
plate and complete the printing at one time, with beautiful and
rich colors, abrasion resistance, UV protection, simple and
convenient operation, fast printing image speed, and fully conform
to industrial printing standards.
Features of UV printing solution: easy to use and operate, no plate
making and repeated color registration process, easy to operate and
maintain. The use of environmentally friendly UV ink, spray and
dry, stable printing, bright colors, high curing strength, low
curing energy, environmental protection and no odor. The use of
varnish can enhance the brightness effect of the image surface, and
the adhesion of varnish on the surface of the image can also
protect the image to a certain extent.
The Photo machine prints the colorful patterns on the special
materials with the printheads. It is generally used in advertising,
graphics, and CAD industries. It has high precision and long life
of the printhead. The photo machine solves the shortcomings of gray
color and high machine purchase cost, And it can make a variety of
inks for users, such as indoor and outdoor, widely used in many
industries.
Application scenario:
Leather printing Tile color printing Wood printing
Product Show:

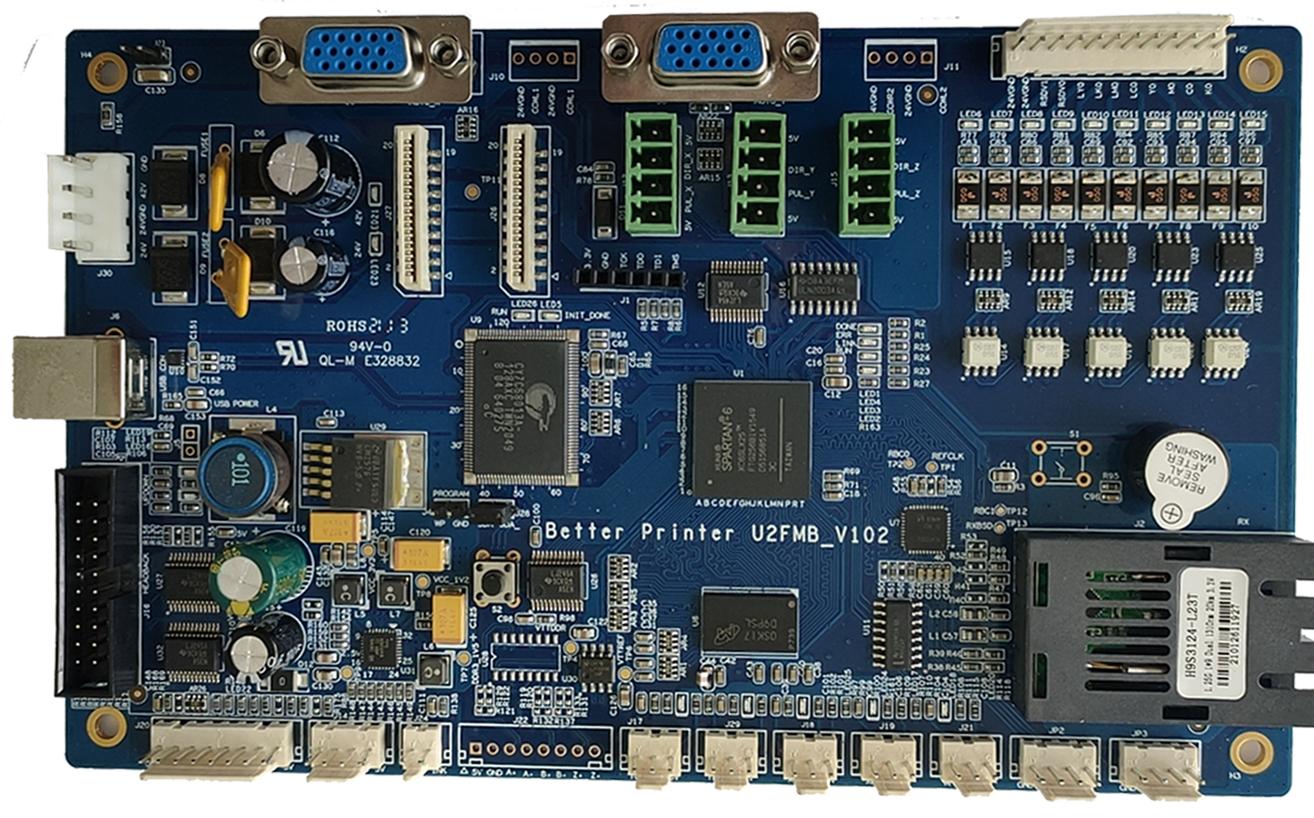

Main board
Double head board
XP600 Inkjet Printer Board suit
About us:
♦ Our software engineers and hardware engineers have 10 years of
knowledge in this field, wish we will get a great start at
nearfuture.
♦ Our team not only built for sale,but prefers to be a solution
provider built to last.
♦ If you are looking for such quality and satisfying service, you kn
ow that we are your only provider.
Pre-Sales Service:
♦ Inquiry and consulting support.
♦ Come to the company to view samples for testing.
After-Sales Service:
♦ Training on how to install and use the printing software.
♦ Engineers solve problems and provide technical support to
customers.
Packing details :
Inner Package : Air bubble bag, bubble film.
Outter package : Pearl cotton, special cardboard box.
⇒
⇒
⇒
⇒
